Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TianJi
Model Number:
TJ-DC Motor
Usage:
Boat, Electric Bicycle, For industrial machines
Certification:
CE
Type:
Permanent Magnet DC Motor
Torque:
CUSTOM
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Explosion-proof
Speed(RPM):
1800 RPM
Continuous Current(A):
CUSTOM
Output Power:
200W,300W,500W,750W
Voltage(V):
12/24/48V
Efficiency:
IE 4
Color:
Black or according to customer's demands
Material:
Cast Iron or Aluminium Alloy Casing
Noise Level:
Less Than 60db
Mounting Position:
Foot mounted, flange mounted
Bearing:
NSK bearing & Homemade bearing
Input Form:
IEC flange for mounting motor
Output Form:
Solid shaft, hollow shaft
Quality Control System:
ISO9001:2000
Quality guarantee:
1 year
item:
double shaft 12v dc gear motor
Packaging & Delivery
| Packaging Details: | Carton or wooden case packaging,also can according to customers' requirements |
|---|
| Delivery Detail: | 5-15 days after receiving the deposit |
|---|

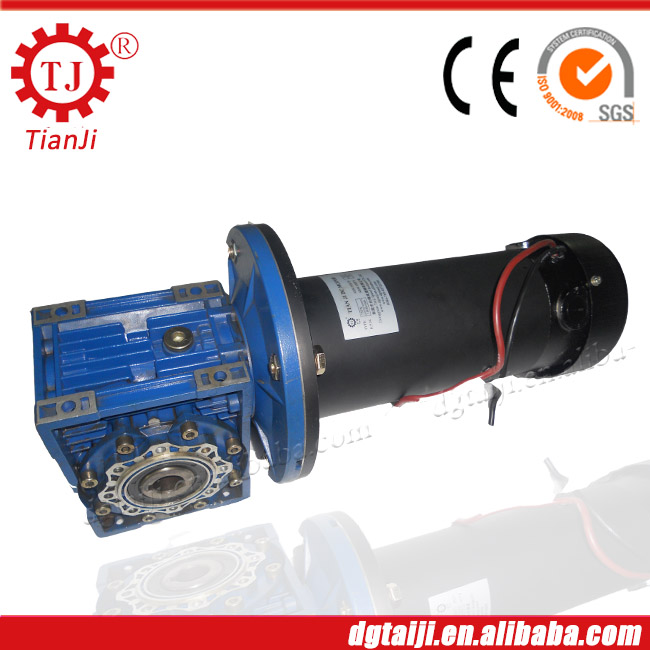

Double shaft 12v 24v dc worm gear motor with gear reduction
Product Description

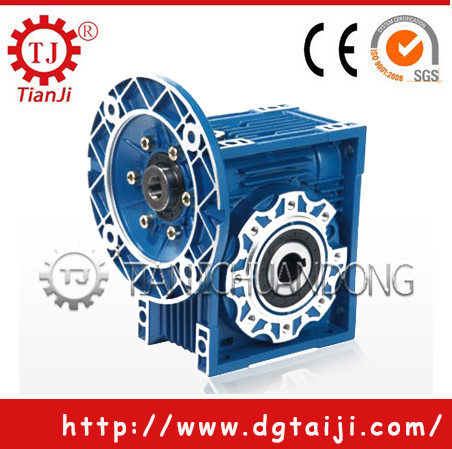

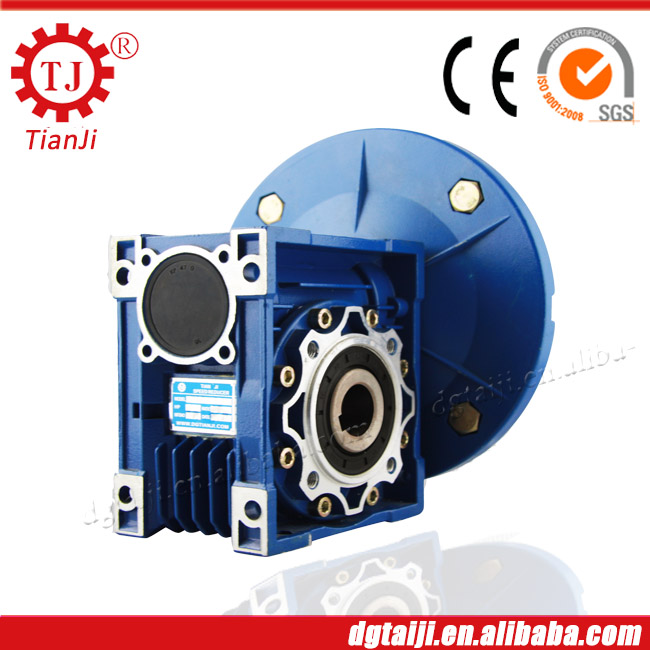

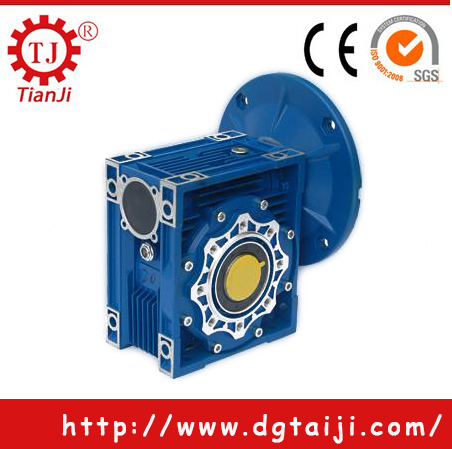

| ♦NMRV/NRY Series Worm and Gear Motor dc electric motors 24 volt with gearbox contains
worm gear reducer and motor(Including three phrese AC motor,single AC
motor,DC servo motor and DC PM motor).The square aluminum gearbox is
manufactured based on GB1055588 cylindrical gear parameter.During the
process, many advanced technologies are adopted.So it has compact
structure, good appearance and excellent heatsink when runing. This
series dc geared motor has the following characteristics:smooth
running, low noise, large transmission ratio and strange loadcapacity
and it may match with different kinds of motors for realizing speed
adjustment. |
|
 | ♦Note 1.No more than 4000m above sea level. 2.Ambient temperature:-25~40degree. 3.Relative humidity ≤95%(at +25degree). 4.The followed temperature rise: no more than 75K(when 1000m above sea level) degree DC motor with gearbox /DC Worm Gear Motor ♦Working principle: Gearbox
is used to transfer rotation and torque from motor to working
machine,the function is to decrease speed by gears and increase torque. |

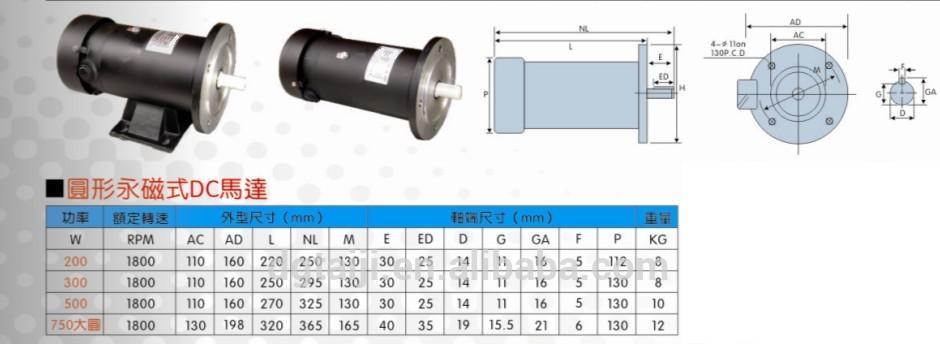

Dc electric motors 12/24/48 volt Specification

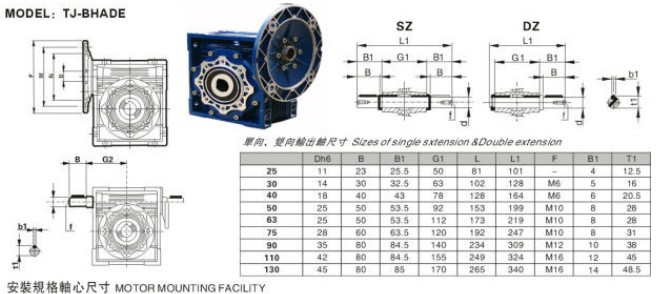

Gearbox Parameter

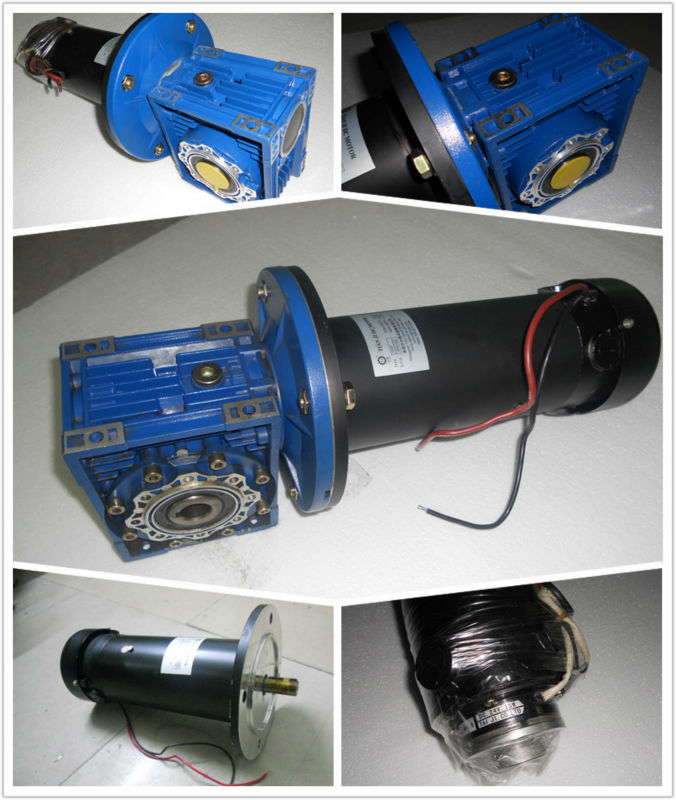

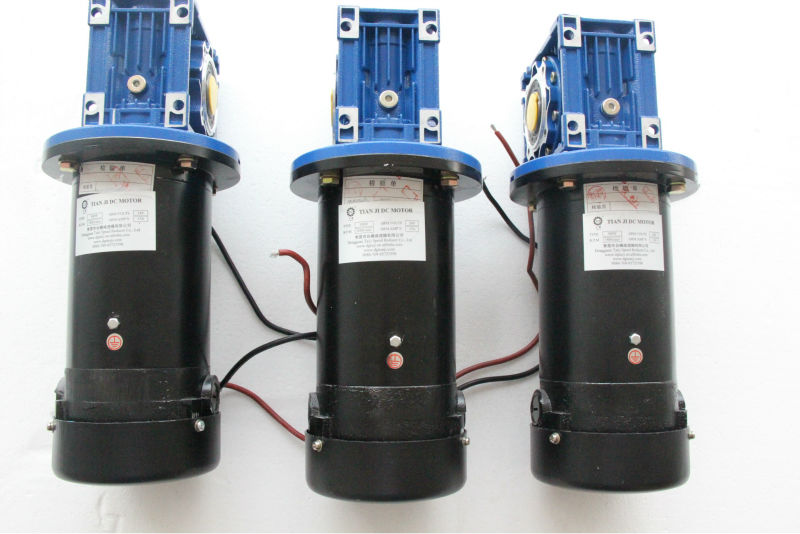

Detail of motor with gearbox(with brake or not)
|
Type: | high precision dc electric motors 24 volt |
Model: | Center Distance:25,30,40,50,63,75,90,110,130 |
Ratio: | 5,7.5,10,15,20,25,30,40,50,60,80,100 |
Color: | Blue/Silver White |
Material: | Aluminium Alloy |
Worm Gear- Cooper-10-3 |
Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC |
Shaft-chromium steel-45 |
Packing: | Carton box/per set(With foam board inside) |
Bearing: | Brand "NSK" Bearing |
Seal: | NAK Seal from TAIWAN |
Warranty: | 1 year |
Input Power: | 0.1kw,0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kw |
Usages: | In industrial machine: widely used in packing, printing,textile machine,as well as woodworking, glass and plastics,food stuff,ceramics,chemical,etc. |
IEC Flange: | B5,B14 |
Lubricant: | Synthetic & Mineral |
Packaging & Shipping
| Packaging | Usually packing carton filling with plastic foam,packing wooden for big size. |
| Qty/carton | 1pcs |
| carton size | as per the product size |
| Shipping | by sea, by air, or express delivery,such as DHL, FEDEX, UPS... |
More order, More discount!
Provide Cheap & Safe Shipping and Express!
Company Information

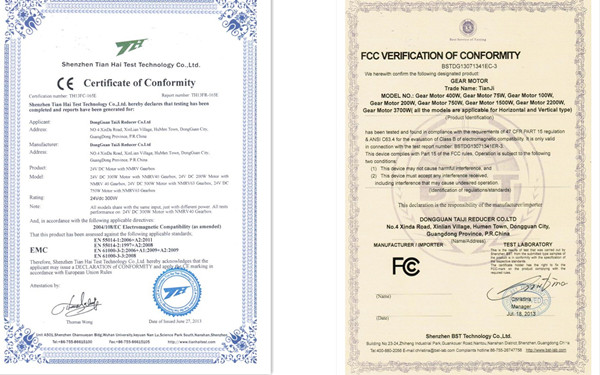

CE/FCC Certifications

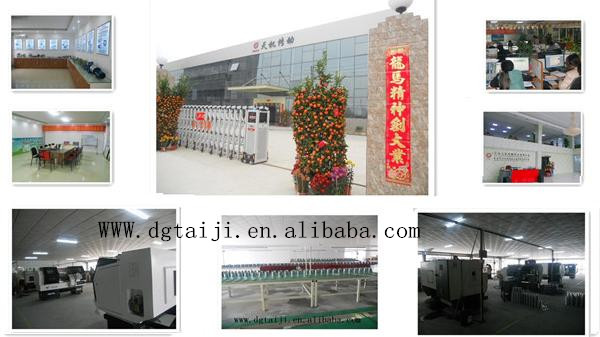

Factory
|
