dc electric motors 24 volt with gearbox contains worm gear reducer and motor(Including three phrese AC motor,single AC motor,DC servo motor and DC PM motor).The square aluminum gearbox is manufactured based on GB1055588 cylindrical gear parameter.During the process, many advanced technologies are adopted.So it has compact structure, good appearance and excellent heatsink when runing.

This series dc geared motor has the following characteristics:smooth running, low noise, large transmission ratio and strange loadcapacity and it may match with different kinds of motors for realizing speed adjustment.

♦Note

1.No more than 4000m above sea level.

2.Ambient temperature:-25~40degree.

3.Relative humidity ≤95%(at +25degree).

4.The followed temperature rise: no more than 75K(when 1000m above sea level) degree DC motor with gearbox /DC Worm Gear Motor

♦Working principle:

Gearbox is used to transfer rotation and torque from motor to working machine,the function is to decrease speed by gears and increase torque.

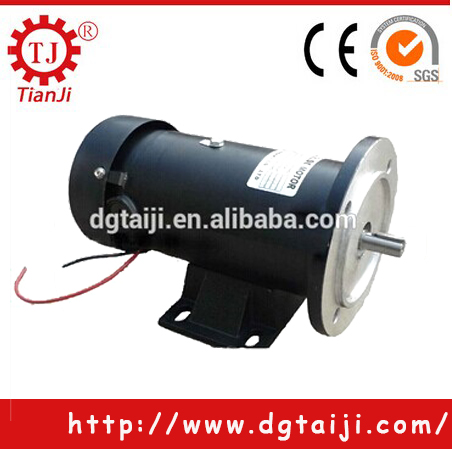

                                Dc electric motors 12/24/48 volt Specification

                                                            Gearbox Parameter

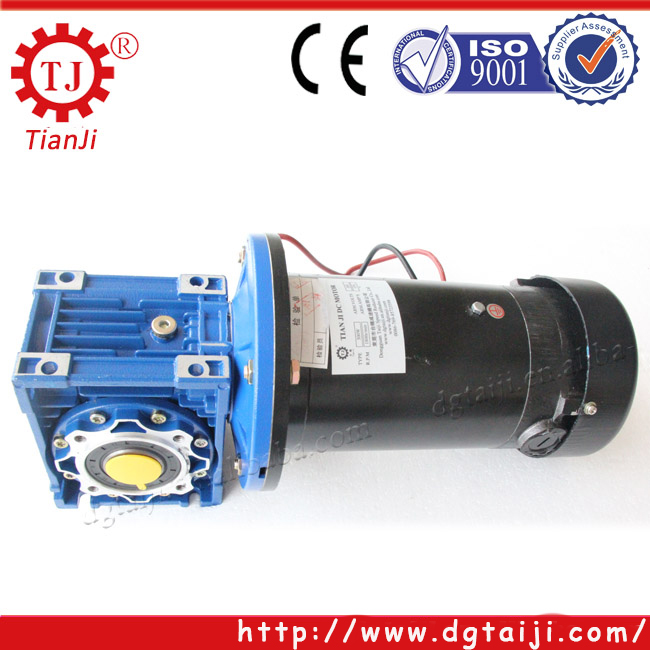

                             Detail of motor with gearbox(with brake or not)

                                                      CE/FCC Certifications

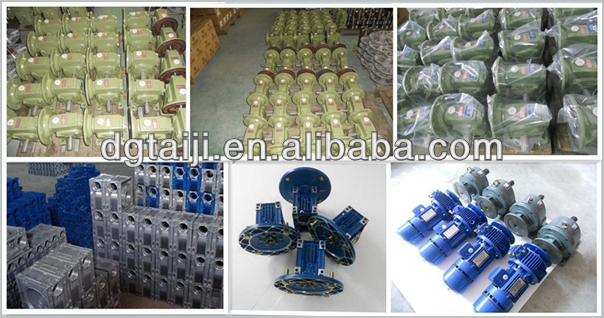

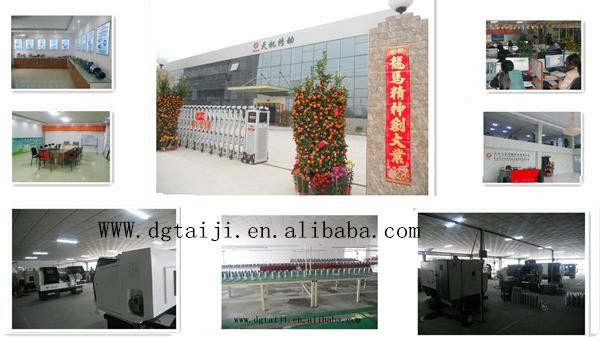

                                                                     Factory
