Product Description

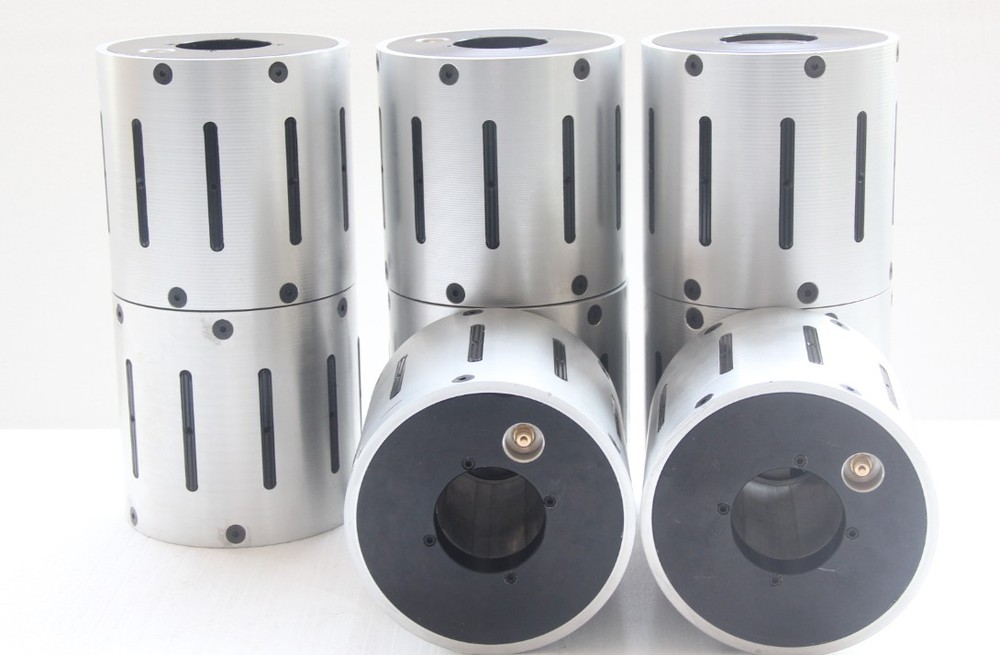

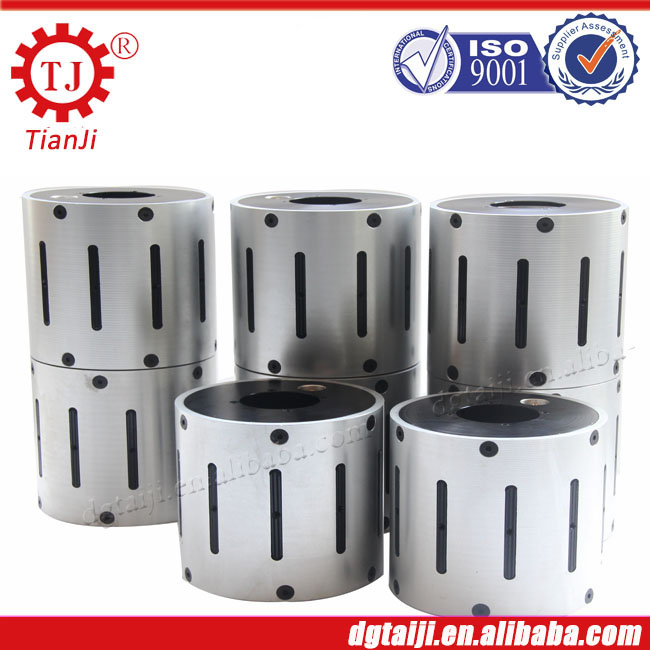

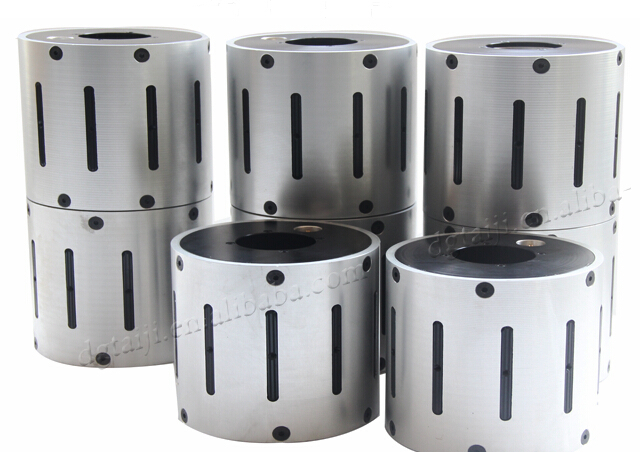

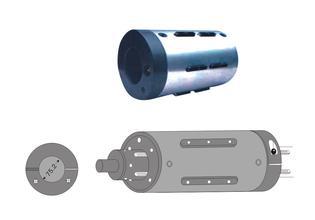

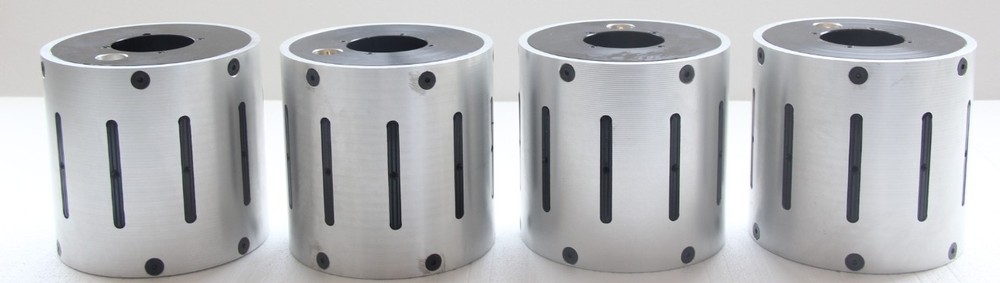

Lug Style Air chuck,air shaft adapter

Technical Data

Type	3"to6"	3"to8"	3"to10"	3"to12"
The dia. before air inflation	148	200	250	300
The dia. after air inflation	156	208	262	310
The inside dia. of paper tube	149~153	201~205	252~256	302~305
Weight	9.8Kg

Mechanical and Pneumatic Expanding Shaft and Core Chuck Adapters- a Systems Approach


Adapters for all brands of shafts and chucks
Core stops available
Different designs to fit every budget and application
Eliminates need for a separate chuck for each core size
Reduces roll-change time
Handles very high weight, web speeds and torque levels



Product Overview
Shaft Adapters – A Systems Approach
Combine shaft adapters with pneumatic and mechanical chucks, which are designed for high-speed printing, laminating, and sheeting applications on unwind flying or zero-speed splicers and other shaftless unwind and rewind applications.

Benefits of converters:
•   Dramatically improve splice reliability.
•   Increase operating speeds.
•   Save time and money with repeated use of cores without damaging core ends, which can lead to excessive dust.
Wide-footprint shaft lugs provide a consistent grip on the core, without damaging the inside. Removal is easy with pneumatic and mechanical retraction of lugs that ensure the lugs never stick to the core.
Convertech’s Expanding Shaft and Chuck Adapters are available with your choice of:
•   mechanical or pneumatic expansions
•   set screw or clamp collar designs


Combine Convertech’s Mechanical or Pneumatic/Mechanical Chucks with our expanding adapters and you’ll be able to use more core diameters without purchasing additional shafts and chucks.

FAQ

1.When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2.How should I place the order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shafts,air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3.What’s your MOQ basis?

Normally, we don’t have MOQ request, except the customized mini clutches/brakes.

4.What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30days.

5.What is the term of ?

We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
