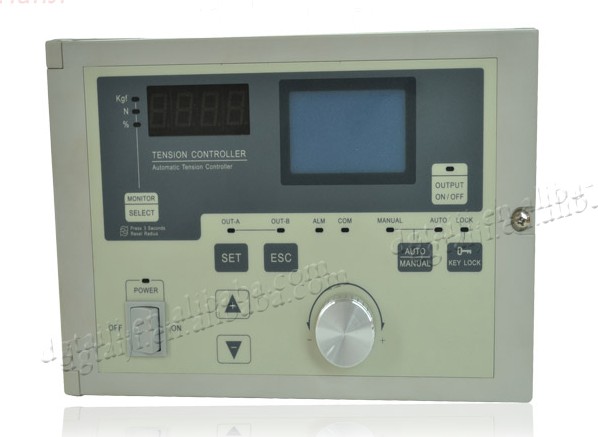

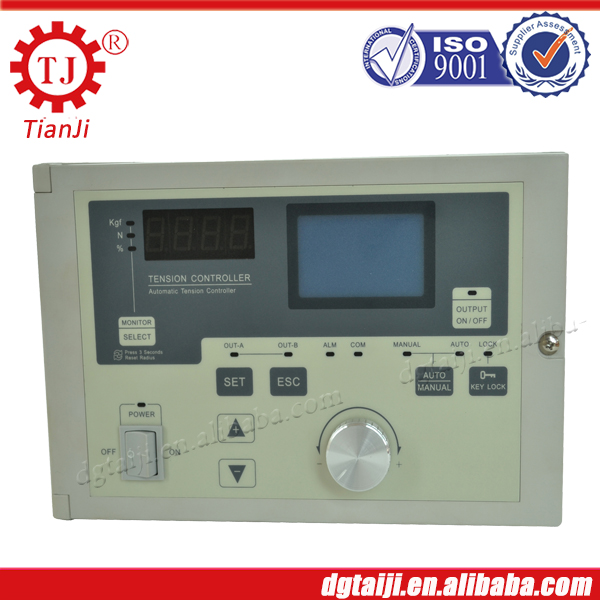

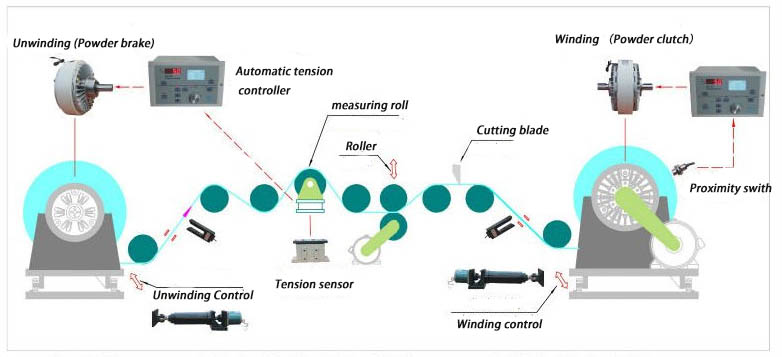

Tianji Transmission automatic tension controller output accuracy up to 0.1% more accurate and stable control of the tension, the tension detector measure directly the tension of reel, and then to convert the data into a signal back tension tension controller. To achieve automatic magnetic powder clutch and brake adjustment of excitation current to control the roll of tension. Generally speaking, a tension control system can be divided into unwinding, send, winding three-part (tension controller can be used).

Automatic tension controller can directly drive magnetic clutch, magnetic brakes, but also to control the drive, servo motor. Other advantages are able to accept single or dual sensor input signal, automatic zero adjustment, automatic calibration. User-friendly interface design, operation is very simple. And internal password setting function, avoiding misuse to change the setting parameters.

 With storage box, various parameters can be backed up, light and beautiful, with a strong anti-electromagnetic interference function. Automatic tension controller is a high precision, multi-functional intelligent all-digital tension controller, tension sensors with closed loop tension control system. Typically supporting magnetic clutch, magnetic brakes are widely used in printing, packaging machines, paper machines, wire and cable equipment, textile and other industrial machinery winding, unwinding and tension control system.
