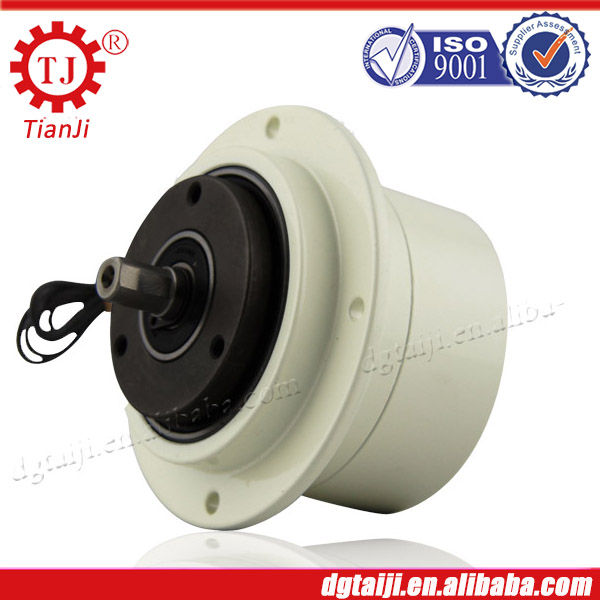

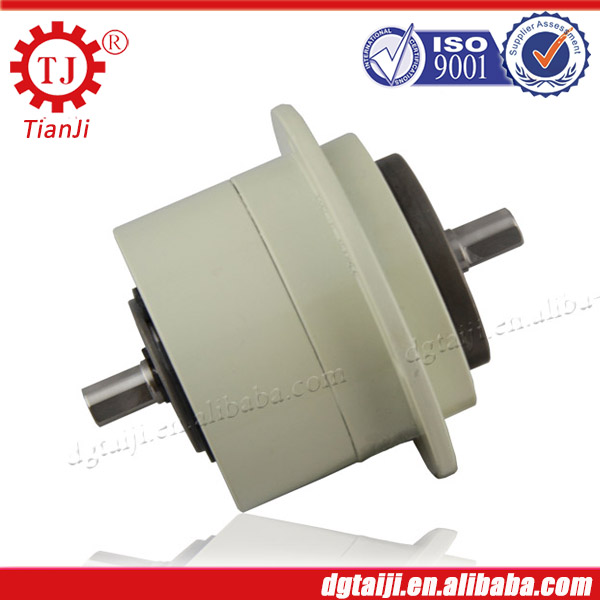

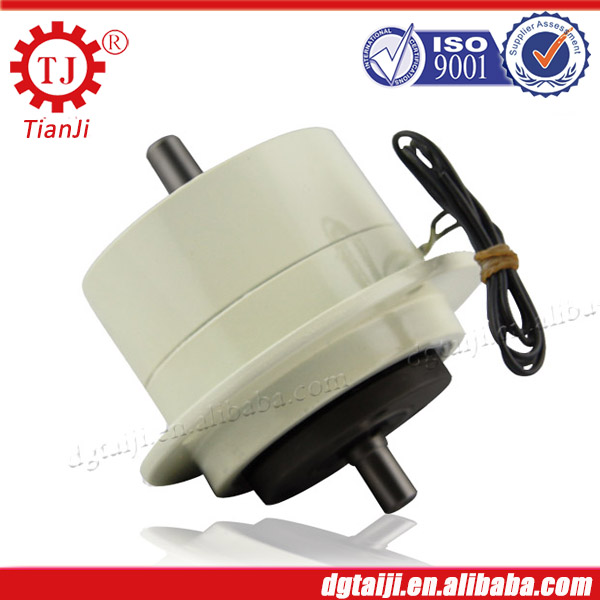

Products DetailTJ-POC-C micro magnetic particle clutch,small powder clutch
Tianji Transmission (TJ-POC-C) micro magnetic clutch of the exciting current is small, but it can output a large torque, which can easily form an automatic control system. In addition, when the exciting current changes, the corresponding magnetic field strength also will be synchronized response, and therefore have an excellent response speed.

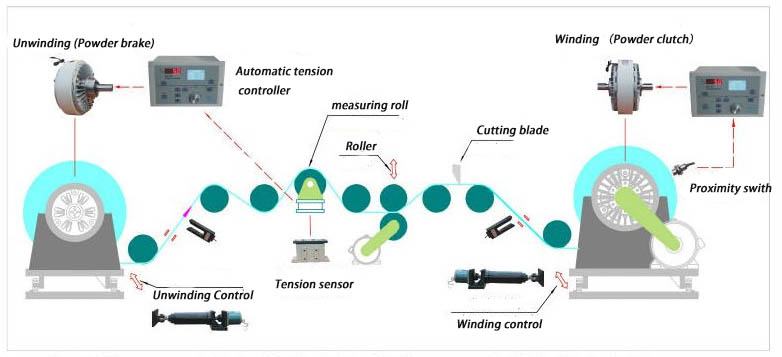

When the magnetizing current is kept constant, the torque output of the unaffected differential (slip speed) between the drive member and the driven member, namely static torque and dynamic torque undifferentiated. So TJ-POC-C Micro Magnetic clutch can be very stable output constant torque. This feature, if applied tension control, then only adjust the size of the excitation currents, can be simple, efficient and accurate to control the reel tension purposes.
Model TJ-POC-C | 0.05KG | 0.1 KG | 0.2KG | 0.5 KG | |
Rated torque （N-m） | 0.5 | 1.0 | 2.0 | 5.0 | |
Current （A） | 0.35 | 0.47 | 0.55 | 0.8 | |
Allowable rational speed （r/min） | 0.67 | 0.88 | 1.27 | 2.3 | |
Power （W） | 1800 | ||||

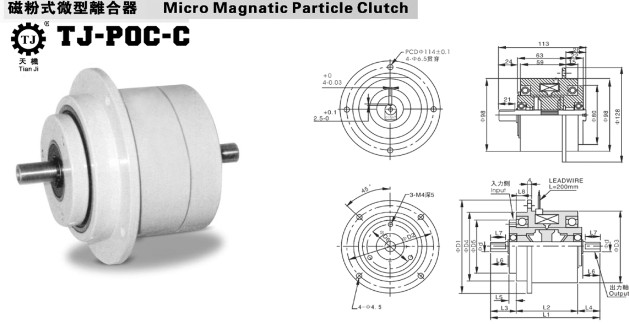

Outline dimension
| D1 | 70 | 76 | 85 | 100 |
D2 | 60 | 66 | 75 | 90 | |
D3 | 42 | 42 | 55 | 74 | |
D4(g7) | 48 | 54 | 63 | 78 | |
D5(g7) | 40 | 42 | 48 | 60 | |
D6 | 30 | 34 | 40 | 50 | |
D6(g6) | 5 | 7 | 9 | 12 | |
L1 | 77.2 | 83 | 95 | 111 | |
L2 | 47 | 48.5 | 53 | 64 | |
L3 | 16.6 | 18.5 | 22.5 | 25 | |
L4 | 13.6 | 16 | 19.5 | 22 | |
L5 | 5.5 | 5.5 | 6.5 | 6 | |
L6 | 10.5 | 12 | 15 | 18 | |
L7 | 9 | 10 | 13 | 16 | |
L8 | 8.5 | 8.5 | 9.5 | 12 | |
T | 4.5 | 6.5 | 8.5 | 11.5 | |

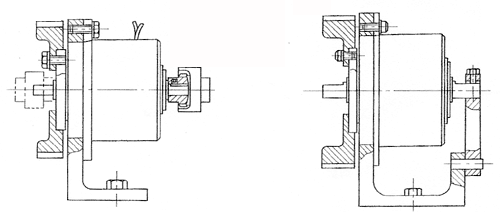

Miniature magnetic clutch installation size specifications are as follows:
The advantages of Tianji Transmission manufacture micro magnetic clutch as following
1, imported wool felt, bearing, improve the safety of magnetic particle leakage (for the magnetic clutch and magnetic brake series);
2, the use of imported high-purity magnetic powder - abrasion, durable, easier to play using its performance, stability;
3, 100% use enameled circle, improve the linearity of magnetic clutch / brake;
4, advanced CNC lathes, machining centers, testing equipment;
5, with a number of independent research and development of advanced technologies, and with the design and manufacture of special purpose;
6, passed ISO9001: 2008 quality management system certification, one year warranty.
Tianji Transmission (TJ-POC-C) micro magnetic clutch, torque between 0.5 ~ 5Nm for natural cooling type, 5r / min from the available, suitable (Manual or automatic type) supporting the use of the tension controller, tension sensor, tension control, and so on.
For more details,pls visits www.tianjidg.com, or contact us tianjicd@hotmail.com
