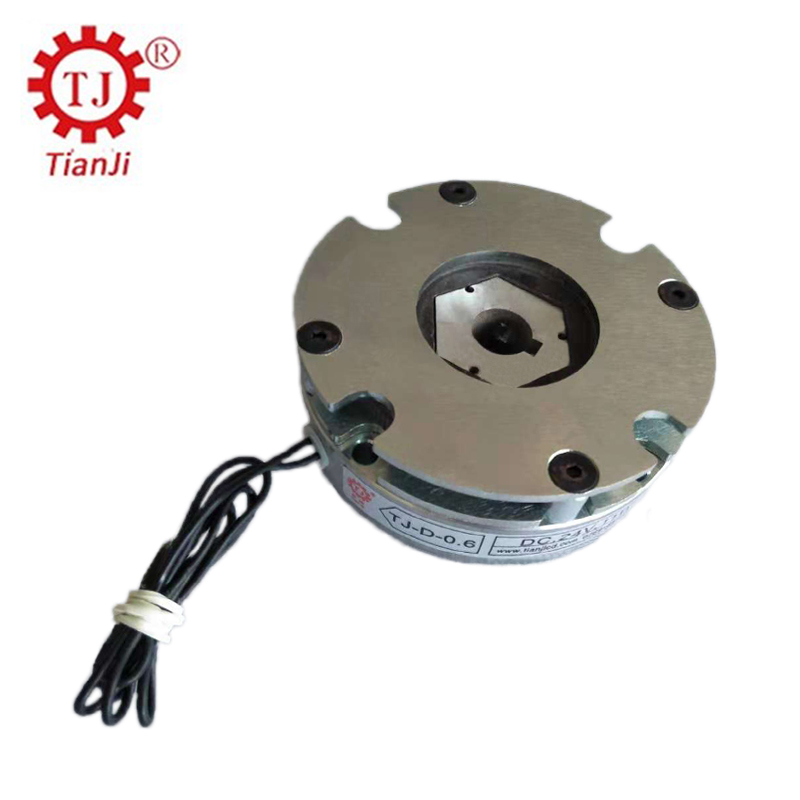

Manufacturers Spot Small Power Loss Electromagnetic Brake Power Off Brake 24v DC Power Brake
Brief introduction of electric brake (Dry Single-plate Solenoid Brake):
Electric brake (also called electro-mechanical brakes or EM brakes) slow or stop motion using electromagnetic force to apply mechanical resistance (friction). The original name was "electro-mechanical brakes" but over the years the name changed to "electromagnetic brakes", referring to their actuation method. Since becoming popular in the mid-20th century especially in trains and trolleys, the variety of applications and electric brake designs has increased dramatically, but the basic operation remains the same.Both electric brakes and eddy current brakes use electromagnetic force but electromagnetic brakes ultimately depend on friction and eddy current brakes use magnetic force directly.
All-purpose use Disc Clutch for machinery spare parts
It is compatible with overall general industrial machinery and the rational design offers good performance.

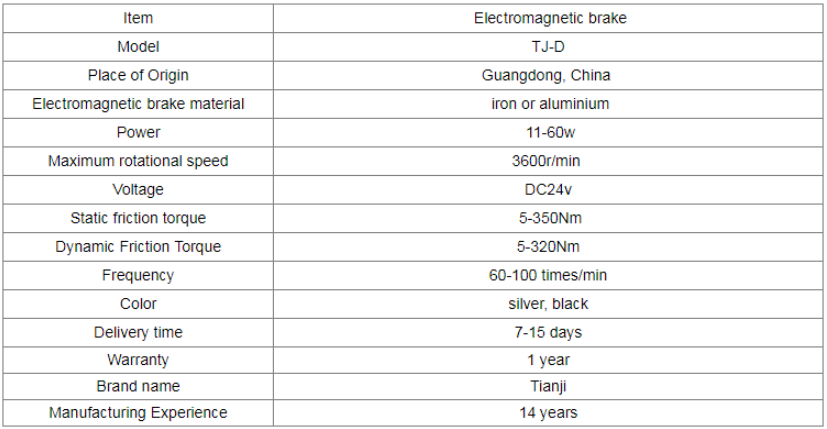

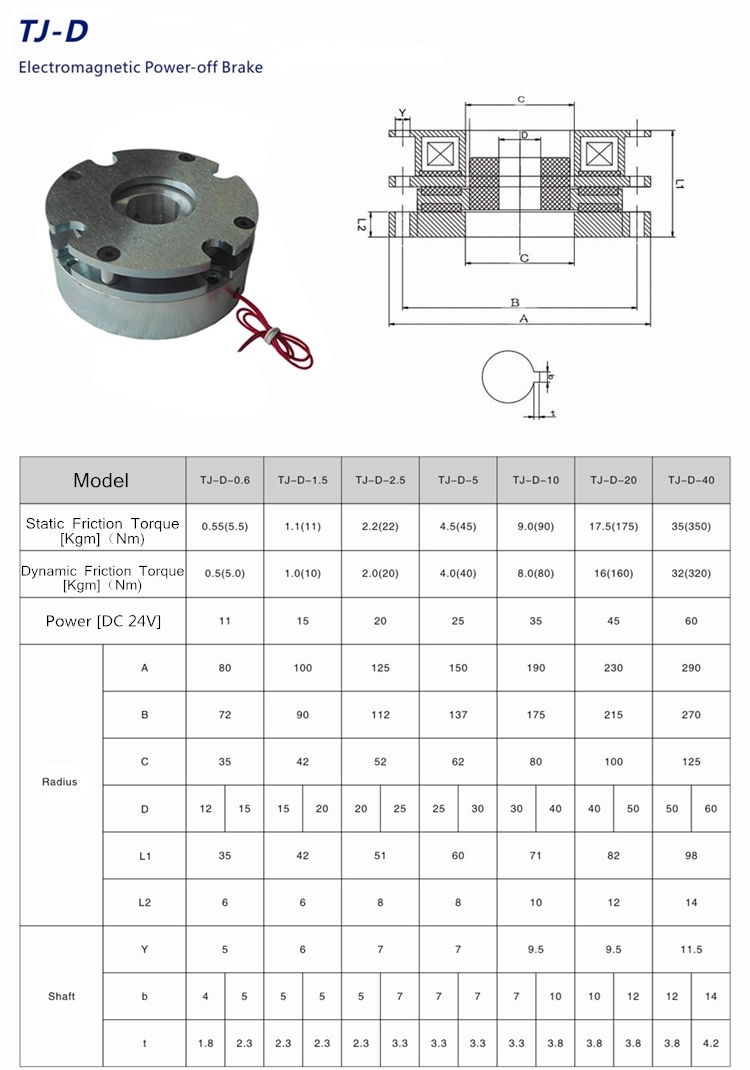

Parameters of Power Off Brake:

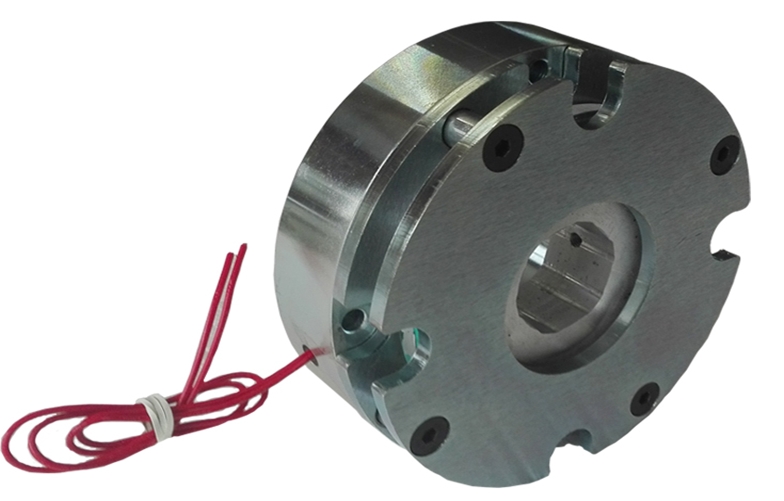

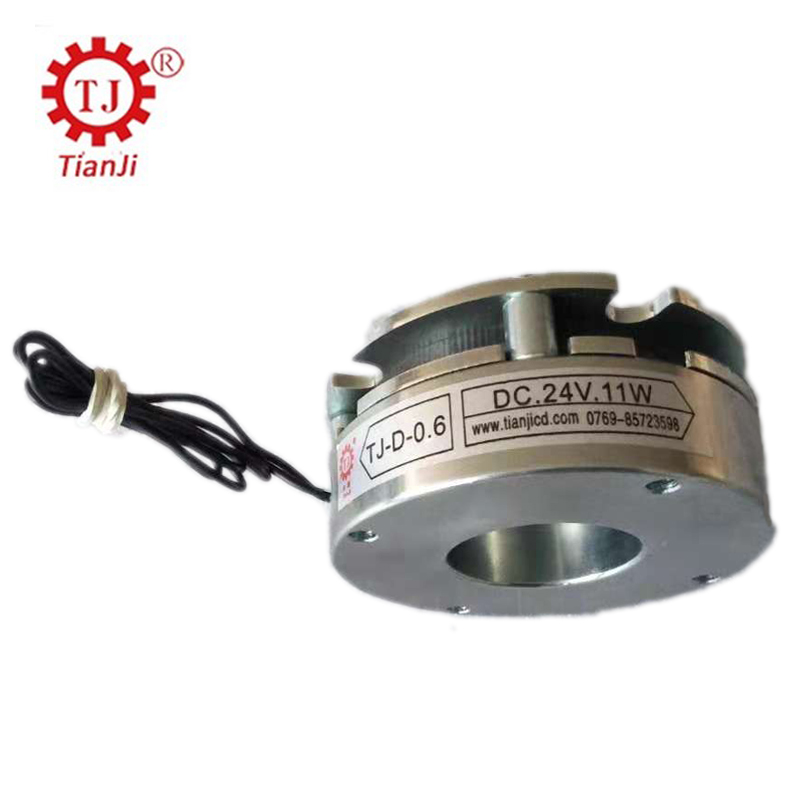

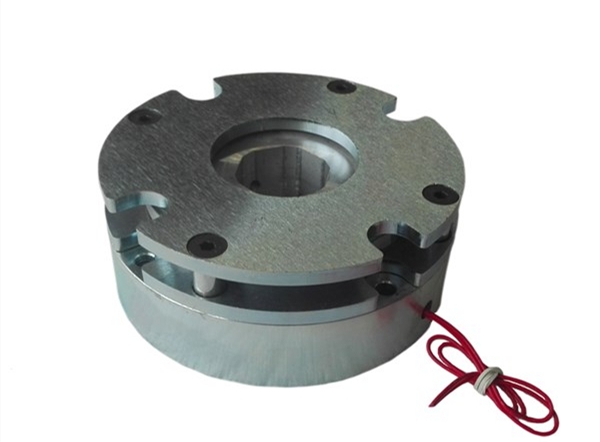

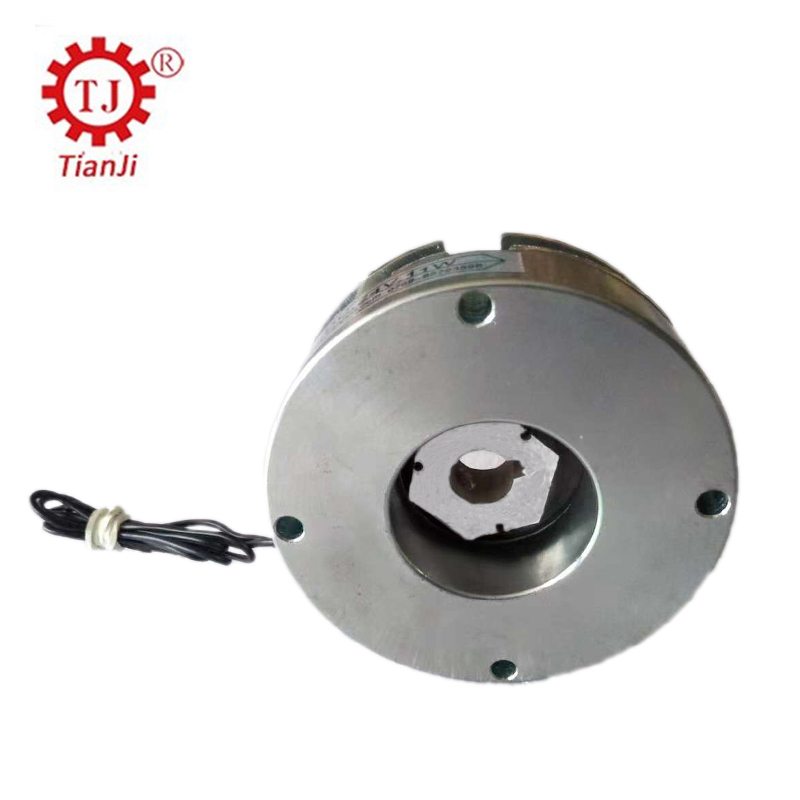

Details of Poweroff brake:
Special features: 1. Fast response. Dry design means instant reaction to commands. 2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions. 3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier. 4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed. 5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life. 6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications. |
Related Products
Advantages
Why do you choose us?
Your choice,We promise!
Eight reasons to choose us:
1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipments.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.
Five Core strengths:
1. The first domestic independent R & D manufacturer and 13 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.

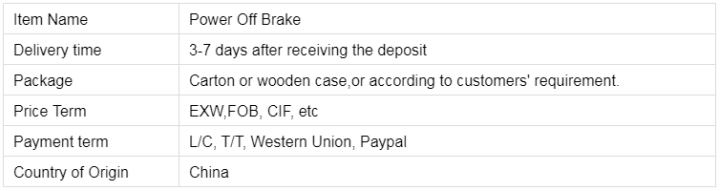

Order details:
More concerned for our products , please do not hesitate to inquiry now!
