Home > Products Select > Electromagnetic Clutch

See larger image

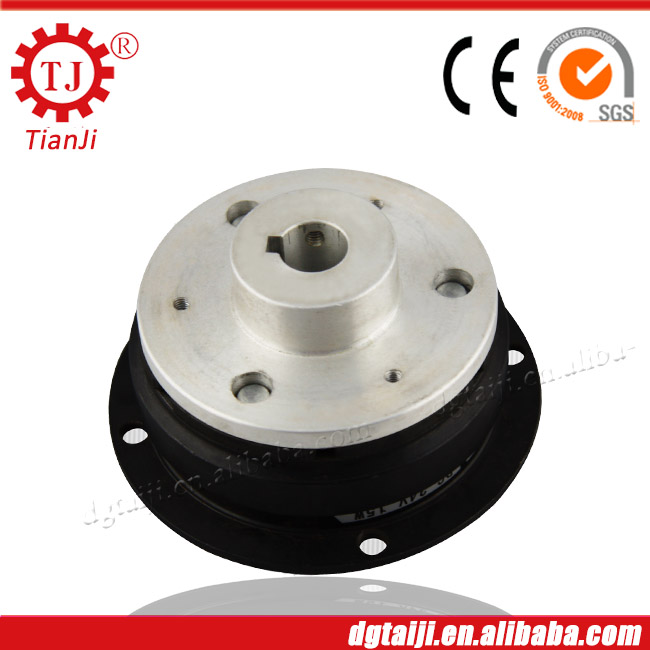

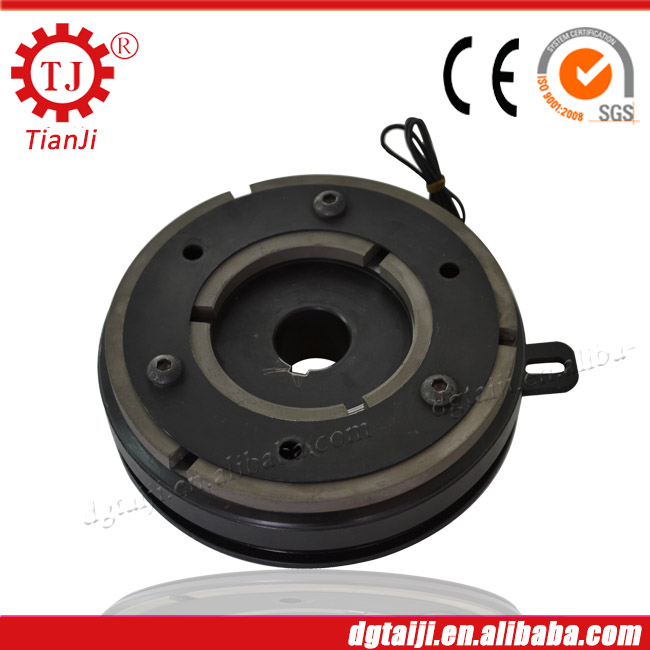

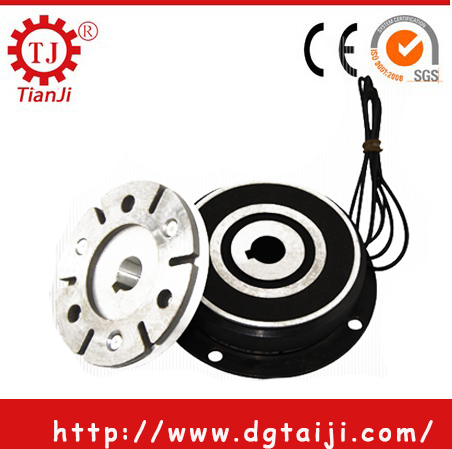

Buy Electromagnetic Clutch with Very Competitive Price

FOB Price:	US $10 - 120 / Piece
Min.Order Quantity:	1 Piece/Pieces or according to customers requirement
Supply Ability:	3000 Piece/Pieces per Month or according to customers requirement
Port:	Guangzhou,Shenzhen
Payment Terms:	L/C,T/T

Message Leave Messages

Add to Favorites

Share to:

Products Detail

Quick Details

Place of Origin: Guangdong, China (Mainland)
Brand Name: Tianji

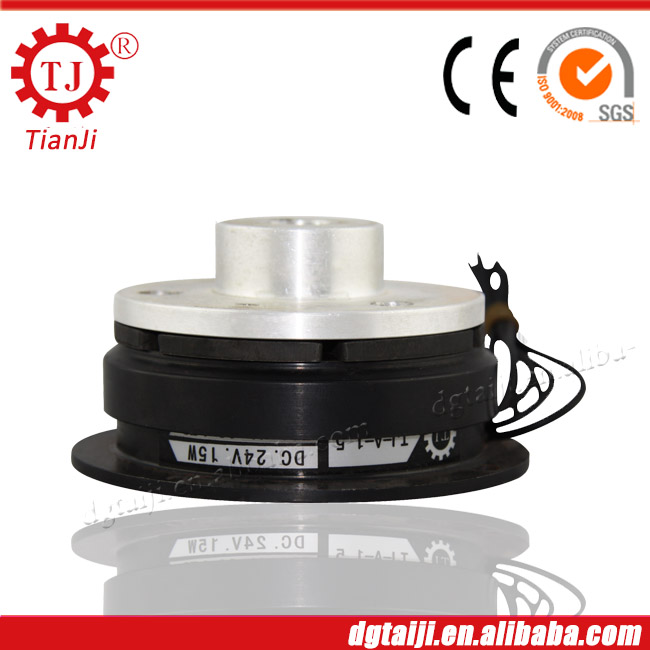

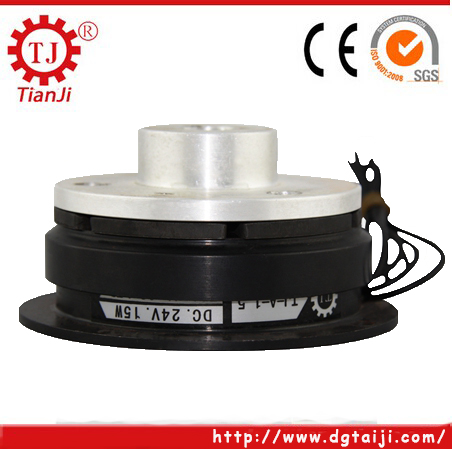

Model Number: TJ-A1-1.5
Color: Black
Voltage: 24V
Static friction torque: 1.1Kgm/11Nm
Power: 15w
Net weight: 0.91kg
Gender: Men
Style: Shoulder Bag
Material: steel

Packaging & Delivery

Packaging Details:	inner is carton;outer is wooden case or according to customers requirement.
Delivery Detail:	within3 days after receiving the payments

Electromagnetic clutch with very competitive price

Product Description

This clutch product is designed by professional engineers with many years of experiences, and production using CNC boring and finishing machines,and be proved good in all using.We use the finest materials available for

magnetic components to yield high friction indexes,as well as premium nonasbestos linings to improve

response time and extend working life. We will be reliable clutch supplier for you.

It is compatible with overall general industrial machinery and the rational design offers

good performance.

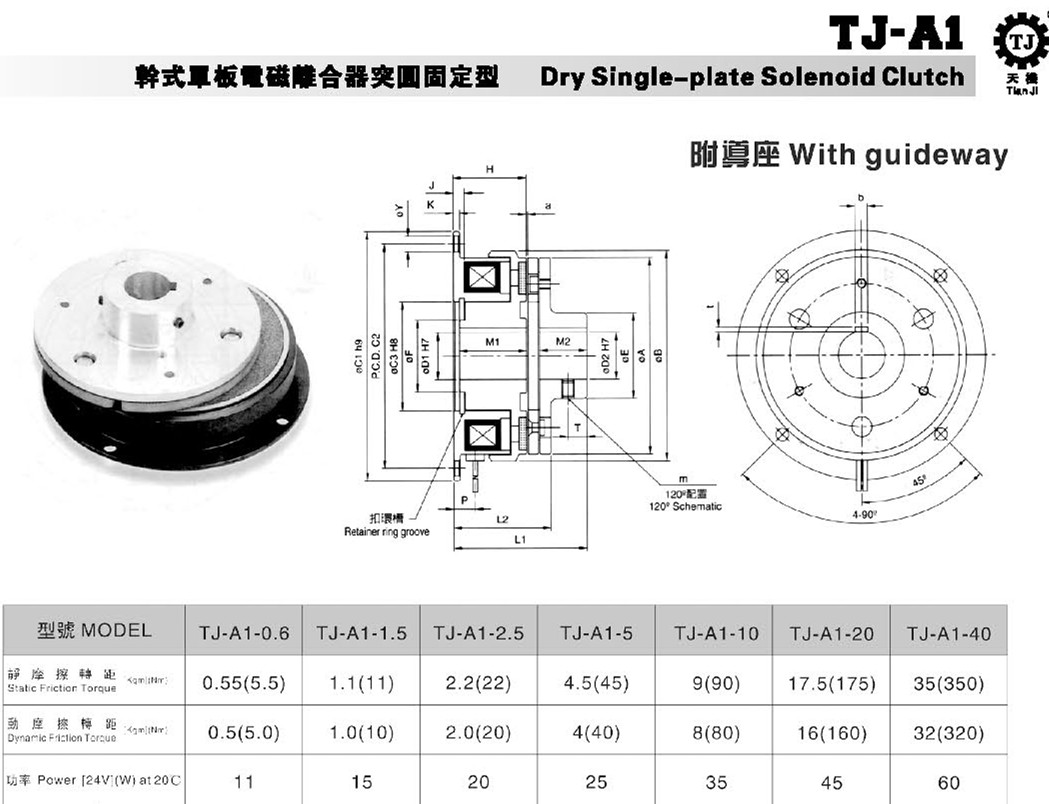

air brake clutch Parameter TJ-A1
MODEL	TJ-A1-0.6	TJ-A1-1.5	TJ-A1-2.5	TJ-A1-5	TJ-A1-10	TJ-A1-20	TJ-A1-40
Static Friction Torque(Nm)	5.5	11	22	45	90	175	350
Dynamic Friction Torque(Nm)	5	10	20	40	80	160	320
Power (W) 24V 20°C	11	15	20	25	35	45	60
Weight (kg)	0.5	0.91	1.66	3.05	5.4	10.5	18.7

air brake clutch Detial Special features 1. Fast response. Dry design means instant reaction to commands. 2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions. 3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier. 4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed. 5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life. 6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

air brake clutch Detial

Special features

1. Fast response. Dry design means instant reaction to commands.

2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions.

3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier.

4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed.

5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life.

6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

Clik me♦

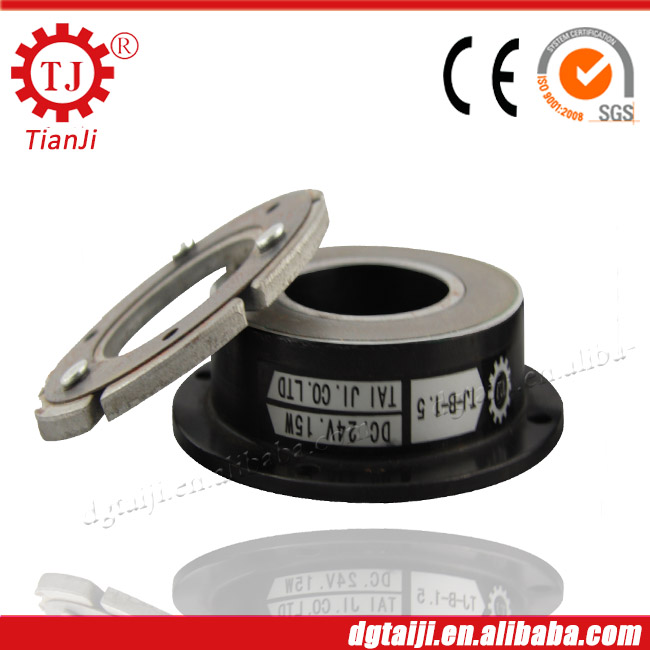

TJ-A1	TJ-B

air brake clutch Appliation Main application 1. Packing and wrapping system: packing machines, strapping machines, wrapping machinery. 2. Textile machinery: fiber twisters, treatment machines, weaving machines. 3. Metal finishing systems: extruders, wire stretchers, presses, welders, steel wire reactors, cutters, pipe makers, wire winding machines 4. Machine tool systems: laths, millers, steel extruders, CNC lathes, specialized machinery. 5. Transportation equipment: hoists, feeders, conveyors, rollers, winders. 6. Paper-making systems: bad-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines.

air brake clutch Appliation

Main application

1. Packing and wrapping system: packing machines, strapping machines, wrapping machinery.

2. Textile machinery: fiber twisters, treatment machines, weaving machines.

3. Metal finishing systems: extruders, wire stretchers, presses, welders, steel wire reactors, cutters, pipe makers, wire winding machines

4. Machine tool systems: laths, millers, steel extruders, CNC lathes, specialized machinery.

5. Transportation equipment: hoists, feeders, conveyors, rollers, winders.

6. Paper-making systems: bad-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines.

Our Services

Why choose us?

Your choice,we promise.

Eight reasons to choose us

1,Perfect service system and after-sale protection

2,Quality problems will be solved within 24hours.

3,two or more free shipping within the pearl river delta.

4,Companies carry out the ERP management, improve enterprise fast response, one-to one customer service tracking processing.

5,Quality assurance, one year warranty.

6,Supporting professional matched other equipments.

7,The company has more than one product testing units, the implementation of ISO9001: 2008.

8,Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.

Five Core strengths

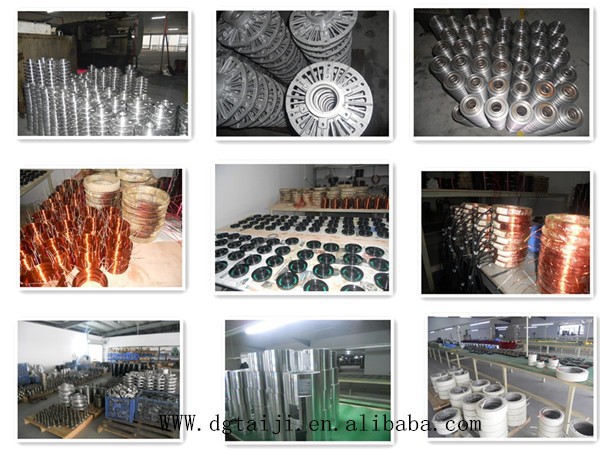

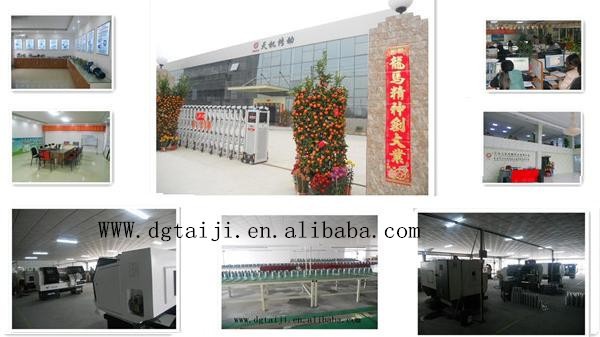

1,The first domestic independent R & D manufacturer and 13 years of professional manufacturing. Processing all adopt Taichung precision machine, CNC machine tool production,"Japan's brothers" machining center. Ensuring that the concentricity is less than 0.01 mm.

2,Casting exquisite, beautiful, practical and durable. The lids adopts aluminum die casting, the surface is smooth, precision, anti-seismic. And the hardness is strong.

3,Complete specifications, cost-effective and spot supply.

4,Independent research and development, special specifications can be customized.

5,Selected materials, high-tech treatment, up to the international standard test.
