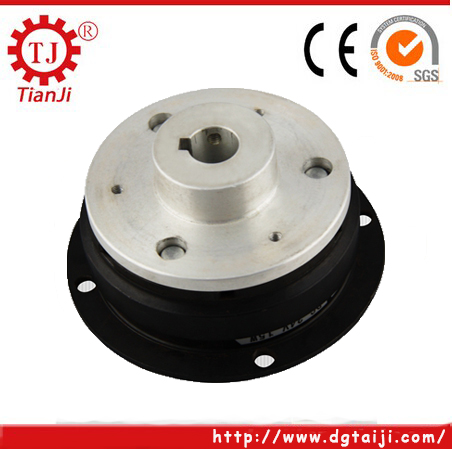

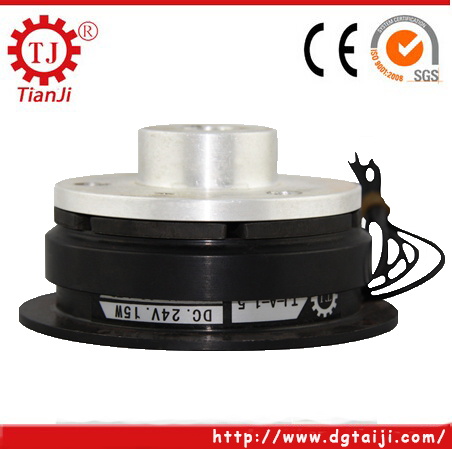

Hot Sell Specialty Make 12v Electric Clutch

FOB Price:	US $30 - 300 / Unit \| Get Latest Price
Min.Order Quantity:	2 Unit/Units or according to customers' requirement
Supply Ability:	100000 Unit/Units per Month or according to customers' requirement
Port:	Shenzhen
Payment Terms:	L/C,T/T

Quick Details

Place of Origin: Guangdong, China (Mainland)
Brand Name: Tianji
Model Number: TJ-A1
Type: Screen Printing Frame
Use: For Man Roland Printer, extruders,wire stretchers,presses
Printing Type: Screen Printing Machine
color: silver, black
Mode: TJ-A-0.6 TJ-A -1.5 TJ-A -2.5 TJ-A -5 TJ-A -10 YS-CI-20 YS-CI-40
Power: 11 15 20 25 35 45 60
Weight: 0.46 / 0.83 / 2.76 / 5.1 / 9.3 / 17
Static Friction Torque: 0.55 / 1.1 / 2.2 / 4.5 / 9 / 17.5 / 35
Dynamic Friction Torque: 0.5 / 1 / 2 / 4 / 8 / 16 / 32
Voltage: 24v
manufacturing experience: 9years

Packaging & Delivery

Packaging Details:	carton box and wooden case or according to customers' requirement
Delivery Detail:	3-25 days upon receive deposit

Hot sell specialty make 12v electric clutch

Taiwan Brand-Tianji

Reliable Quality,Reasonable Price and Good Service.

Any email will be replied with 24 hours. Thanks for your time!

Product Description

This clutch product is designed by professional engineers with many years of experiences, and production using CNC boring and finishing machines,and be proved good in all using.We use the finest materials available for

magnetic components to yield high friction indexes,as well as premium nonasbestos linings to improve

response time and extend working life. We will be reliable clutch supplier for you.

It is compatible with overall general industrial machinery and the rational design offers

good performance.

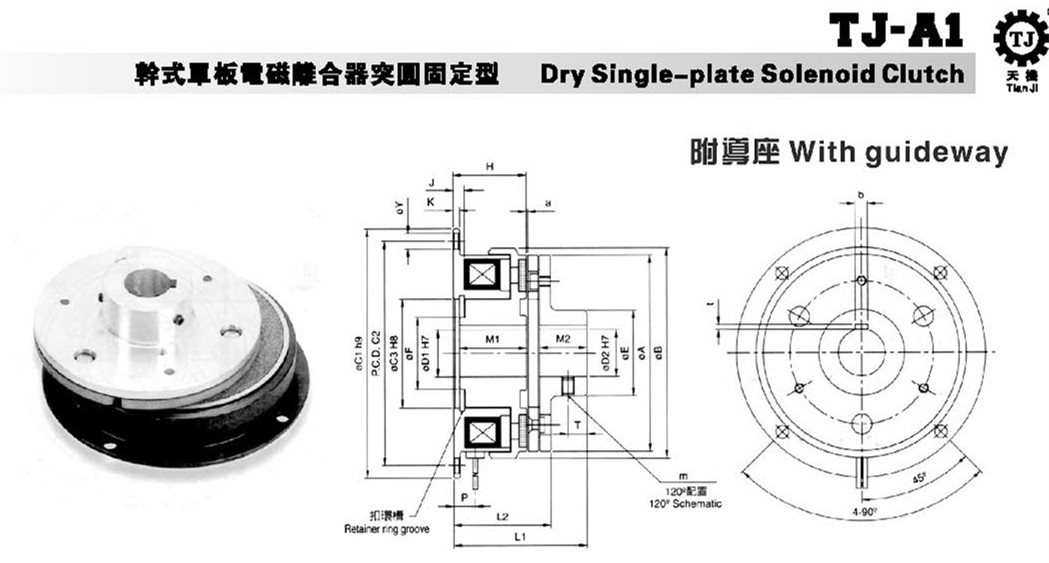

Electromagnetic clutch Parameter TJ-A1
MODEL	TJ-A1-0.6	TJ-A1-1.5	TJ-A1-2.5	TJ-A1-5	TJ-A1-10	TJ-A1-20	TJ-A1-40
Static Friction Torque(Nm)	5.5	11	22	45	90	175	350
Dynamic Friction Torque(Nm)	5	10	20	40	80	160	320
Power (W) 24V 20°C	11	15	20	25	35	45	60
Weight (kg)	0.5	0.91	1.66	3.05	5.4	10.5	18.7

Electromagnetic clutch Detial Special features 1. Fast response. Dry design means instant reaction to commands. 2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions. 3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier. 4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed. 5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life. 6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

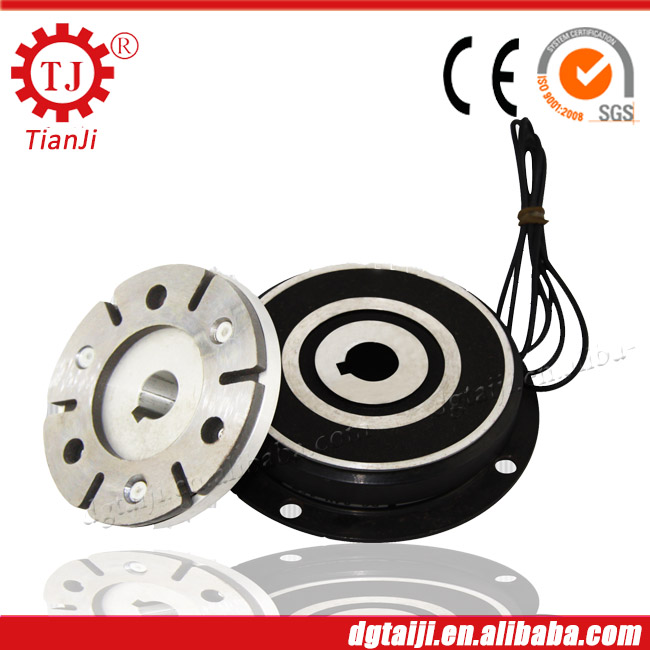

Electromagnetic clutch Detial

Special features

1. Fast response. Dry design means instant reaction to commands.

2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions.

3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier.

4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed.

5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life.

6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

Clik me♦

TJ-A1	TJ-B

Electromagnetic clutch Appliation Main application 1. Packing and wrapping system: packing machines, strapping machines, wrapping machinery. 2. Textile machinery: fiber twisters, treatment machines, weaving machines. 3. Metal finishing systems: extruders, wire stretchers, presses, welders, steel wire reactors, cutters, pipe makers, wire winding machines 4. Machine tool systems: laths, millers, steel extruders, CNC lathes, specialized machinery. 5. Transportation equipment: hoists, feeders, conveyors, rollers, winders. 6. Paper-making systems: bad-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines.

Electromagnetic clutch Appliation

Main application

1. Packing and wrapping system: packing machines, strapping machines, wrapping machinery.

2. Textile machinery: fiber twisters, treatment machines, weaving machines.

3. Metal finishing systems: extruders, wire stretchers, presses, welders, steel wire reactors, cutters, pipe makers, wire winding machines

4. Machine tool systems: laths, millers, steel extruders, CNC lathes, specialized machinery.

5. Transportation equipment: hoists, feeders, conveyors, rollers, winders.

6. Paper-making systems: bad-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines.

Packaging & Shipping

Packaging	Usually packing carton filling with plastic foam,packing wooden for big size.
Qty/carton	1pcs
carton size	as per the product size
Shipping	by sea, by air, or express delivery,such as DHL, FEDEX, UPS...

More order, More discount!

Provide Cheap & Safe Shipping and Express!
