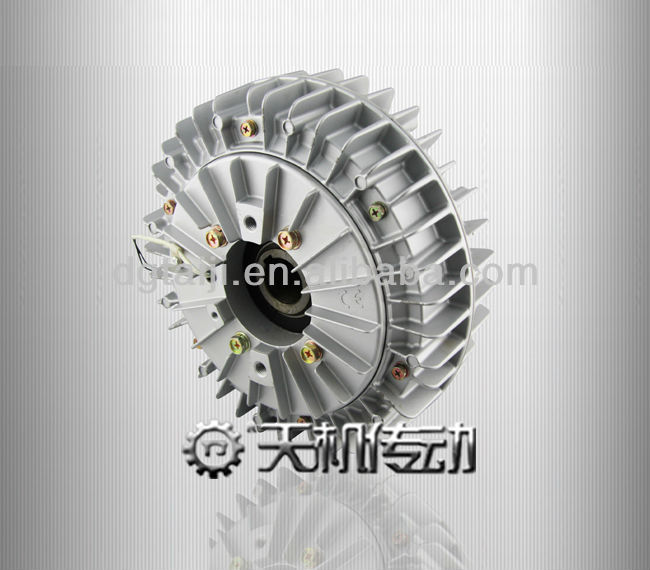

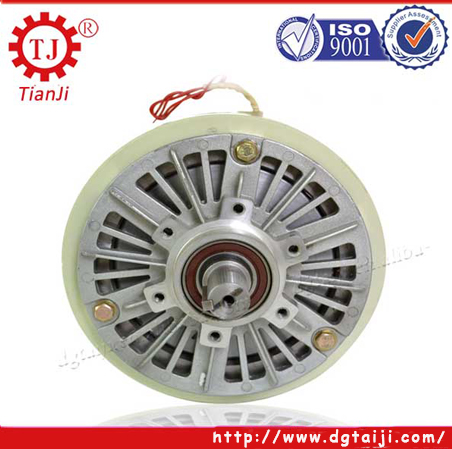

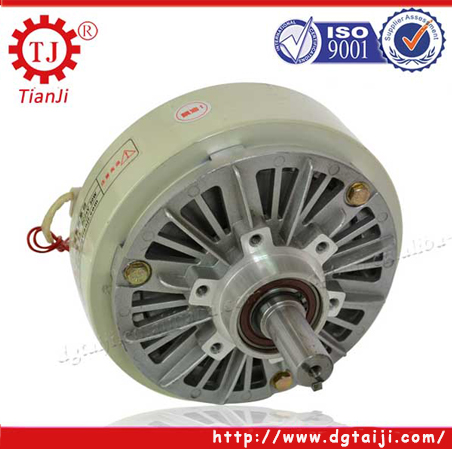

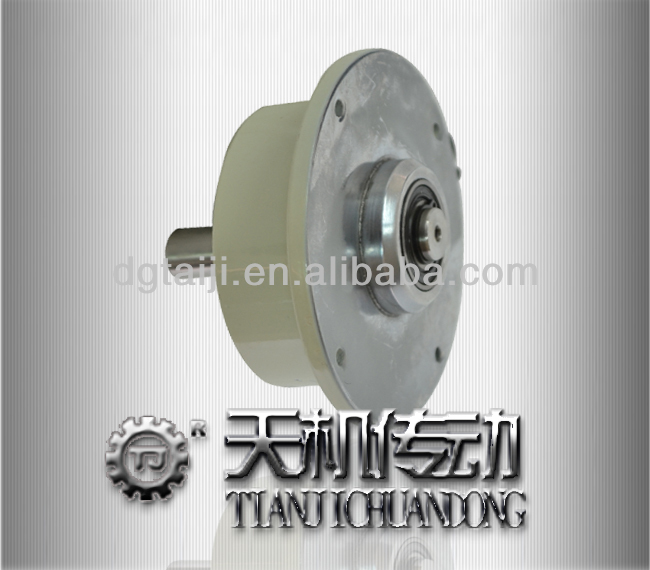

Products Detailhigh performance powder brake
Taiwan Brand-Tianji
Reliable Quality,Reasonable Price and Good Service.
Any email will be replied with 24 hours. Thanks for your time!
Product Description
| Belief introduction
A high quality magnetic powder clutch is a special type of electromagnetic clutch which does not use friction plates. Instead, it uses a fine powder of magnetically susceptible material (typically stainless steel) to mechanically link an otherwise free wheeling disc attached to one shaft, to a rotor attached to the other shaft. When a magnetic field is applied to the powder, it forms chains connecting the disc and rotor. The strength of the chains depends on the strength of the magnetic field. We use the finest materials available for magnetic components to yield high friction indexes, as well as premium non-asbestos linings to improve response time and extend working life. We will be reliable powderbrake supplier for you.
| |
| * Volatge: dc 24v
* Magnetic powder clutch/brake0.6KG-40KG stock supply
* Imported highly magnetized magnetic powder
* Imported wool felt and NSK bearings operate smoothly
* Coil 100% use enamelled copper wire
* Cast steel material |
Featured advantages
1. Fast response. Dry design means instant reaction to commands. 2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions. 3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier. 4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed. 5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life. 6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications. | We can also can supply powder brake with mounting brackets as right figure.
|

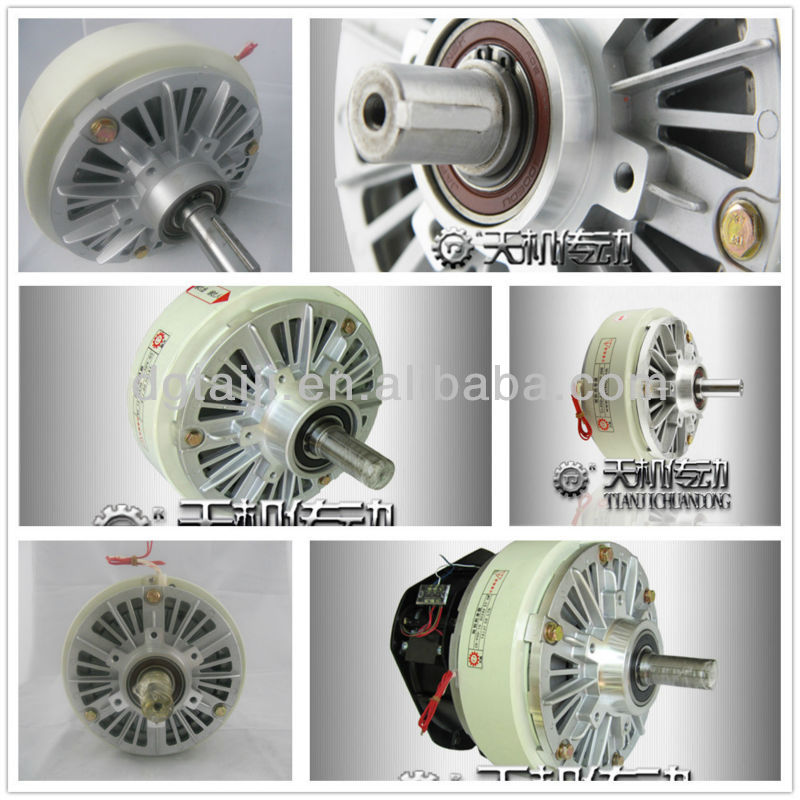

Powder Brake detials
|
Powder Brake Application
Applied industry
1. Packing and wrapping system: packing machines, strapping machines, wrapping machinery 2. Textile machinery: fiber twisters, treatment machines, weaving machines. 3. Metal finishing systems: extruders, wire stretchers, presses, welders, steel wire reactors, cutters, pipe makers, wire winding machines 4. Machine tool systems: laths, millers, steel extruders, CNC lathes, specialized machinery. 5. Transportation equipment: hoists, feeders, conveyors, rollers, winders. 6. Paper-making systems: bad-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines.
|
You may like
| Outer shell roates | Inner shell roates | Micro magnetic particle brake | Tension controller and detector |
 |  |  |  |
Notes
1.Don’t overload, meanwhile cool to appropriate temperature
The value of the torque/rotational speed/slip power should be less than the rated value. The cooling mode(natural cooling/forced air cooling/water cooling) should depend on the maximum slip power when it works and the cooling air should pass the water and oil filter. The temperature detector and the alarm should be installed to prevent high temperature which can affect the service life of the magnetic powder.(the highest temperature is 80 degree)
2. Concerning the torque
After the high qualiity magnetic powder clutch and magnetic powder brake working, the magnetic powder will be in grinding at the beginning which leads to the torque decreasing slightly, but the gap can be compensated through adjustment the current.
3.Concerning the service life
The life of the magnetic powder clutch and magnetic brake rely on the life of the magnetic powder. Generally speaking, its service life is 4500-7500hours in the state of non overloaded; but its service life can extend several times in some cases, such as: the working torque of the magnetic powder clutch/brake,relative slip rotational speed and slip power can be reduced to 50%-70% of the rated value. This is to say, the margin can be enlarged as soon as possible when designing
Packaging & Shipping
| Packaging | Usually packing carton filling with plastic foam,packing wooden for big size. |
| Qty/carton | 1pcs |
| carton size | as per the product size |
| Shipping | by sea, by air, or express delivery,such as DHL, FEDEX, UPS... |
More order, More discount!
Provide Cheap & Safe Shipping and Express!
Company Information
They are our factory,sample room,meeting room,sale team.
Fairs
Workshop
Material
FAQ
1.When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2.How should I place the order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shafts, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3.What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.
4.What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30days.
5.What is the term of ?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
